Author：Peter Pan

In response to the compact size and high-density parts designed for high-end product currently, more and more designers use components which pins are located at the bottom side in order to save space, such as BGA, QFN, DFN, the Connector ... and so on. The process capability and inspection practices would be a major test. With only strict process control, but no good/ appropriate inspection instruments or equipment, there is no guarantee for quality. It may be resulted a whole batch failure after the testing phase. If customer faces time pressure of urgent shipment, they will be caught off guard, bruised and battered.

In order to effectively enhance the PCBA production capability and soldering quality control. We purchase the X'ray inspection machines this year. In addition to the original process control procedures and implement first article inspection by this device ,check the parts solder joint quality. It can be found as soon as possible for original unforeseen problems in production and immediately improved in order to prevent the unusual problems appearance and reduce the cost of failure.

To purchase the most proper X'ray inspection machines, it is via multi-evaluation before the decision is made. It falls on " Scienscope International”, Model View X2000. It is mainly because he is engaged in research and development of optical instruments and testing equipment with production experiences, especially the cost advantage. After purchase of X'ray devices, we hope to enhance process control capabilities and also offer customers to feel easy, at ease and more confidence. Customer would like to stay in our company and we can continue to do the service for customer to win customer’s satisfaction.

The main functions of X’ray are described below :

1. 100KV,5 micron ,X’ray closed tube

-Less than 2.5 microns defects can be detected, easy maintenance and long life.

2. Mapping function

-Simple operation, when use the mouse click to PCBA picture on LCD screen and it can control the motor to speed X’ray tube positioning, reducing operator training.

3. Edit the testing procedures

-It can be set the detection of one or more routes and sequence for large quantities of product testing operations, the detection of high repeat accuracy.

4. Measurement functions

-Bubble measurement ,Area measurement, Dimensional measurement.

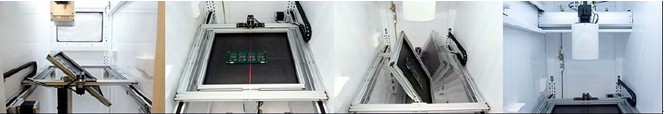

5. 16’x18’ loading units

-It can accommodate a large number of various sizes were inspected at the same time.

6. Plus or minus 60 degree rotation tilt

-Allow a unique perspective to inspect products.
